Buick Regal: Adaptive Forward Lighting Malfunction

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

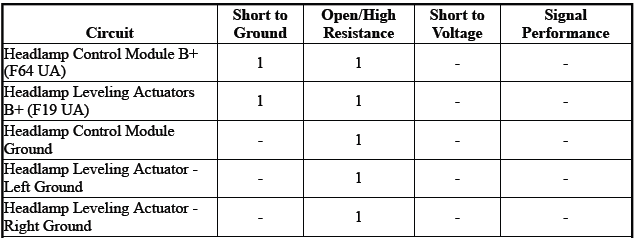

Diagnostic Fault Information

Lighting

1. Adaptive Forward Lighting Malfunction

Circuit/System Description

Battery positive voltage is applied to the headlamp control module at all times. The headlamp control module has a normal operational voltage range of about 12.5 - 16 V and is only fully functional with the ignition switch is in the RUN position and the headlamp switch in the AUTOMATIC LIGHT position.

The communications enable signal from the body control module (BCM) wakes the headlamp control module microprocessor. The headlamp control module receives serial data messages from the engine control module (ECM), transmission control module (TCM), electronic brake control module (EBCM), and BCM with information regarding power mode, speed, steering angle, transmission gear selection, and headlamp switch status. The headlamp control module calculates the headlamp angle and sends commands to the left and right adaptive forward lighting system headlamp actuators. The headlamp actuators drive the headlamps to the position commanded by the headlamp control module. The headlamp control module monitors the headlamp actuator motor control circuits for proper circuit continuity and for shorts to ground or voltage. If a malfunction is detected, a DTC will be stored in memory and the driver will be notified with a message displayed over the driver information center located on the instrument cluster.

Reference Information

Schematic Reference

Headlights/Daytime Running Lights (DRL) Wiring Schematics

Connector End View Reference

COMPONENT CONNECTOR END VIEWS - INDEX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information.

Circuit/System Testing

1. Ignition OFF, exterior lamps OFF, disconnect the harness connector at the appropriate E13 Headlamp Assembly. It may take up to 2 min for all vehicle systems to power down.

2. Test for less than 15 Ω between the ground circuit terminal 8 and ground.

  • If 15 Ω or greater
  1. Ignition OFF.
  2. Test for less than 2 Ω in the ground circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, repair the open/high resistance in the ground connection.
  • Go to next step: If less than 15 Ω

3. Ignition ON.

4. Verify a test lamp illuminates between the B+ circuit terminal 6 and ground.

  • If the test lamp does not illuminate
  1. Ignition OFF, disconnect the X1 harness connector at the X50A Fuse Block - Underhood.
  2. Test for infinite resistance between the B+ circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in the control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the X50A Fuse Block - Underhood.
  • Go to next step: If the test lamp illuminates

5. Test or replace the K26 Headlamp Control Module.

6. Ignition ON.

7. Verify the appropriate headlamp operates to the LEFT and RIGHT positions when commanding the appropriate Headlamp Horizontal Motor LEFT and RIGHT with a scan tool.

  • If the headlamp does not operate LEFT and RIGHT

Test or replace the E13 Headlamp Assembly.

  • Go to next step: If the headlamp operates LEFT and RIGHT

8. All OK.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Headlamp Replacement
  • Control Module References for headlamp control module replacement, programming, and setup
