Buick Regal: DTC P111E

Diagnostic Instructions

• Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
• Review Strategy Based Diagnosis for an overview of the diagnostic approach.
• Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC P111E

Engine Coolant Temperature Sensor Not Plausible

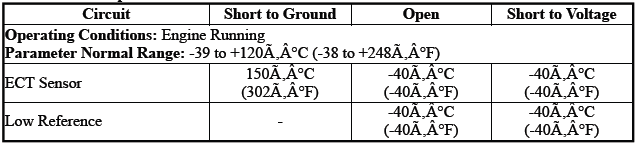

Diagnostic Fault Information

Typical Scan Tool Data

ECT Sensor Temperature

Circuit/System Description

The engine coolant temperature (ECT) sensor is a variable resistor that measures the temperature of the engine coolant. The engine control module (ECM) supplies 5V to the ECT sensor signal circuit and a ground for the low reference circuit.

If the ECM detects that the temperature difference between the measured and modeled ECT is not within an acceptable operating range of each other, then the ECM will continue to run this diagnostic to determine if a block heater was active during the engine OFF time.

Conditions for Running the DTC

• DTCs P0111, P0112, P0113, P0114, P0117, P0118, P0128, P0502, P0503, P0601, P1621, or P2610 are not set.
• The vehicle has had a minimum ignition OFF time of 8 hours.
• The engine is running.
• The start-up modeled ECT is colder than 50ºC (+122ºF).
• The previous accumulated MAF is greater than 6, 000 grams.
• The previous engine run time is greater than 600 seconds.

OR

• The vehicle has had a minimum ignition OFF time of 8 hours.
• The engine is running.
• The previous ECT at engine shutdown is warmer than 75ºC (+167ºF).
• The previous accumulated MAF is greater than 6, 000 grams.
• The previous engine run time is greater than 600 seconds.

This DTC runs continuously within the enabling conditions.

Conditions for Setting the DTC

P111E

The ECM detects a temperature difference at initial power-up that indicates that the actual measured ECT is 10ºC (18ºF) greater than the modeled ECT, and an active block heater has not been detected.

Action Taken When the DTC Sets

DTC P111E is a Type B DTC.

Conditions for Clearing the MIL/DTC

DTC P111E is a Type B DTC.

Diagnostic Aids

• Engine coolant that is leaking through the sensor will create a high resistance short to ground.

  This condition results in less voltage on the ECT sensor signal circuit, which is interpreted by the ECM as a warmer ECT.

• The ECM memory which includes the ignition OFF timer is maintained by battery power. If the ECM or the battery are disconnected for less than 15 seconds the proper operation of the ECM memory and the timer can be disrupted. Always disconnect these components for greater than 30 seconds.

Reference Information

Schematic Reference

Engine Controls Wiring Schematics (LTG)

Connector End View Reference

Component Connector End View Index

Electrical Information Reference

• Circuit Testing
• Connector Repairs
• Testing for Intermittent Conditions and Poor Connections
• Wiring Repairs

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

1. Turn OFF the ignition.

2. Inspect the cooling system surge tank for the proper engine coolant level.

3. If the ignition has been OFF for 8 hours or greater, the intake air temperature (IAT) sensor, the IAT sensor 2, and the ECT sensor should be within 9ºC (16ºF) of each other and also the ambient temperature. Ignition ON, observe the scan tool IAT Sensor, IAT Sensor 2 and the ECT Sensor parameters. Compare those sensor parameters to each other and also to the ambient temperature to determine if the ECT sensor is skewed warmer.

4. Engine running, observe the ECT Sensor parameter. The reading should be between -39 to +120ºC (-38 to +248ºF) depending on the current ambient temperature and the vehicle operating conditions.

5. Operate the vehicle within the Conditions for Running the DTC to verify the DTC does not reset.

You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.

Circuit/System Testing

1. Ignition OFF and all vehicle systems OFF, disconnect the B34 Engine Coolant Temperature Sensor harness connector at the sensor. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 5 Ω between the low reference circuit terminal 2 and ground.

• If 5 Ω or greater

1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
2. Test for less than 2 Ω in the low reference circuit end to end.
   • If 2 Ω or greater, repair the open/high resistance in the circuit.
   • If less than 2 Ω, replace the K20 Engine Control Module.

• Go to next step: If less than 5 Ω

3. Ignition ON.

4. Verify the scan tool ECT Sensor parameter is colder than -39ºC (-38ºF).

• If warmer than -39ºC (-38ºF)

1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
2. Test for infinite resistance between the signal circuit terminal 1 and ground.
   • If less than infinite resistance, repair the short to ground on the circuit.
   • Go to next step: If infinite resistance.
3. Test for less than 2 Ω in the signal circuit end to end.
   • If 2 Ω or greater, repair the open/high resistance in the circuit.
   • If less than 2 Ω, replace the K20 Engine Control Module

• Go to next step: If colder than -39ºC (-38ºF)

5. Install a 3 A fused jumper wire between the signal circuit terminal 1 and the low reference circuit terminal 2.

6. Verify the scan tool ECT sensor parameter is warmer than 149ºC (300ºF).

• If warmer than 149ºC (300ºF)

1. Ignition OFF, remove the jumper wire, disconnect the harness connector at the K20 Engine Control Module, Ignition ON.
2. Test for less than 1 V between the signal circuit and ground.
   • If 1 V or greater, repair the short to voltage on the circuit.
   • Go to next step: If less than 1 V

7. Test or replace the B34 engine coolant temperature sensor.

Component Testing

1. Ignition OFF, disconnect the harness connector at the B34 Engine Coolant Temperature Sensor.

2. Test the ECT sensor by varying the sensor temperature while monitoring the sensor resistance.

Compare the readings with the Temperature Versus Resistance - Engine Coolant Temperature Sensor table. The resistance values should be in range of the table values.

• If not within the specified range

Replace the B34 Engine Coolant Temperature Sensor.

• Go to next step: If within the specified range

3. Test for infinite resistance between each terminal and the sensor housing.

• If less than infinite resistance

Replace the B34 Engine Coolant Temperature Sensor.

• Go to next step: If infinite resistance

4. All OK.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure.

• Engine Coolant Temperature Sensor Replacement
• Control Module References for ECM replacement, programming, and setup
