Buick Regal: Engine Coolant Fan Replacement (2.0L LTG)

Removal Procedure

1.

Engine Cooling

Engine Coolant Fan Module Radiator (1) - Remove.

2.

Engine Cooling

Engine Coolant Fan Shroud Bolt (1) @ Radiator - Remove [2x].

3. Engine Coolant Fan (2) @ Radiator - Remove.

4.

Engine Cooling

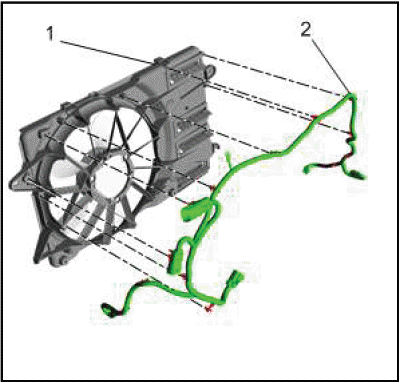

Engine Coolant Fan Wiring Harness (2) @ Engine Coolant Fan - Remove.

5. Transfer components as necessary.

Installation Procedure

1.

Engine Cooling

Engine Coolant Fan Wiring Harness (2) @ Engine Coolant Fan - Install.

2.

Engine Cooling

Engine Coolant Fan (2) @ Radiator - Install.

CAUTION: Refer to Fastener Caution.

3. Engine Coolant Fan Shroud Bolt (1) @ Radiator - Install and tighten [2x] 5.1 N.m (45 lb in).

4.

Engine Cooling

Engine Coolant Fan Module Radiator (1) - Install.

ENGINE COOLANT FAN REPLACEMENT (3.6L LGX)

Removal Procedure

1.

Engine Cooling

Radiator (1) - Remove.

2.

Engine Cooling

Engine Coolant Fan Shroud Clip (1) @ Engine Coolant Fan - Remove.

3.

Engine Cooling

Engine Coolant Fan Bolt (1) @ Radiator - Remove [2x].

4. Engine Coolant Fan (2) @ Radiator - Remove.

5.

Engine Cooling

Engine Coolant Fan Wiring Harness (1) - Remove.

6. Transfer components as necessary.

Installation Procedure

1.

Engine Cooling

Engine Coolant Fan Wiring Harness (1) - Install.

2.

Engine Cooling

Engine Coolant Fan (2) @ Radiator - Install.

CAUTION: Refer to Fastener Caution.

3. Engine Coolant Fan Bolt (1) @ Radiator - Install and tighten [2x] 5.1 N.m (45 lb in).

4.

Engine Cooling

Engine Coolant Fan Shroud Clip (1) @ Engine Coolant Fan - Install.

5.

Engine Cooling

Radiator (1) - Install.

ENGINE COOLANT FAN MOTOR REPLACEMENT

Removal Procedure

1.

Engine Cooling

NOTE: The left and right side engine coolant fans are different. Ensure you install the left or right side engine coolant fans on the proper side.

Engine Coolant Fan (2) @ Radiator - Remove.

2. Disconnect the electrical connectors.

3.

Engine Cooling

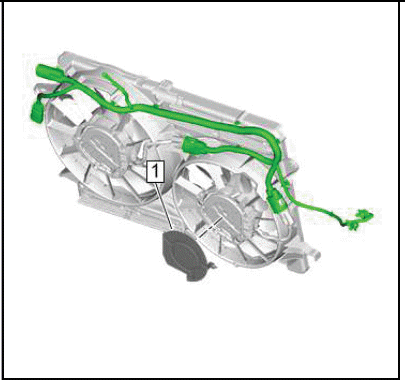

Engine Coolant Fan Motor Heat Shield (1) @ Engine Coolant Fan - Remove.

4.

Engine Cooling

Engine Coolant Fan Motor Bolt (1) - Remove [6x].

5. Engine Coolant Fan Motor (2) - Remove [2x].

6. Transfer components as necessary.

Installation Procedure

1.

Engine Cooling

Engine Coolant Fan Motor (2) - Install [2x].

CAUTION: Refer to Fastener Caution.

2. Engine Coolant Fan Motor Bolt (1) - Install and tighten [6x] 6 N.m (53 lb in).

3.

Engine Cooling

Engine Coolant Fan Motor Heat Shield (1) @ Engine Coolant Fan - Install.

4. Connect the electrical connectors.

5.

Engine Cooling

Engine Coolant Fan (2) @ Radiator - Install.
