Buick Regal: Specifications, Schematic and Routing Diagrams
SPECIFICATIONS
TEMPERATURE VERSUS RESISTANCE
.png)
FASTENER SPECIFICATIONS (2.0L LTG)
Single Use Non-Threaded Fasteners/Components
NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.
.png)
.png)

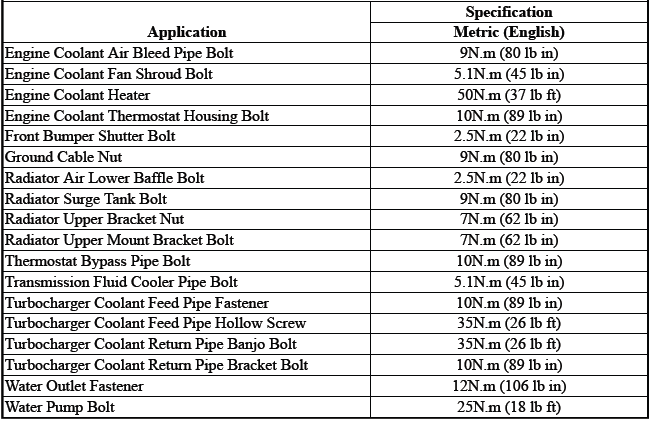

Reusable Threaded Fastener Tightening Specifications
NOTE: All fasteners listed in this table can be reused after removal.
.png)
FASTENER SPECIFICATIONS (3.6L LGX)
Single Use Non-Threaded Fasteners/Components
NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.
.png)
Single Use Threaded Fastener/Component Tightening Specifications
NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.
.png)
Reusable Threaded Fastener Tightening Specifications
NOTE: All fasteners listed in this table can be reused after removal.
.png)
APPROXIMATE FLUID CAPACITIES
.png)
ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS
.png)
SCHEMATIC AND ROUTING DIAGRAMS
ENGINE HEATING/COOLING SCHEMATICS
Cooling Fans (LGX)
.png)
Cooling Fan (LTG)
.png)
