Buick Regal: DTC B3843

Diagnostic Instructions

• Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
• Review Strategy Based Diagnosis for an overview of the diagnostic approach.
• Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B3843 02

Air Quality Sensor Circuit Short to Ground

DTC B3843 05

Air Quality Sensor Circuit High Voltage/Open

DTC B3843 08

Air Quality Sensor Circuit Performance - Signal Invalid

Diagnostic Fault Information

Circuit/System Description

The HVAC control module uses an air quality sensor to detect hydrocarbons. This sensor operates using an ignition voltage circuit, a ground circuit and a signal circuit.

This information is sent to the HVAC control module using a pulse width modulated (PWM) signal. It is used only when the automatic HVAC mode is requested by the customer.

When the HVAC module detects the concentration of pollutants exceeds a preset value, recirculation mode is commanded to keep the passenger compartment free of pollutants.

Conditions for Running the DTC

• Ignition ON
• The HVAC control module is ON.

Conditions for Setting the DTC

B3843 02

No PWM is detected and the signal is low.

B3843 05

No PWM is detected and the signal is high.

B3843 08

The sensor sends a 5% PWM signal indicating an internal sensor short circuit or open circuit.

Action Taken When the DTC Sets

The automatic recirculation mode is disabled.

Conditions for Clearing the DTC

The condition for setting the DTC is no longer present.

Reference Information

Schematic Reference

HVAC Wiring Schematics

Connector End View Reference

Component Connector End View Index

Description and Operation

Automatic HVAC Description and Operation

Electrical Information Reference

• Circuit Testing
• Connector Repairs
• Testing for Intermittent Conditions and Poor Connections
• Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information.

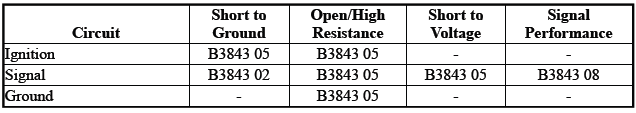

Circuit/System Testing

1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the B108 Air Quality Sensor. It may take up to 2 min for all vehicle systems to power down.

2. Test for less than 10 Ω between the ground circuit terminal 2 and ground.

• If 10 Ω or greater

1. Ignition OFF.
2. Test for less than 2 Ω in the ground circuit end to end.
   • If 2 Ω or greater, repair the open/high resistance in the circuit.
   • If less than 2 Ω, repair the open/high resistance in the ground connection.

• Go to next step: If less than 10 Ω

3. Ignition ON.

4. Verify a test lamp illuminates between the ignition circuit terminal 1 and ground.

• If the test lamp does not illuminate and the circuit fuse is good

1. Ignition OFF, remove the test lamp.
2. Test for less than 2 Ω in the ignition circuit end to end.
   • If 2 Ω or greater, repair the open/high resistance in the circuit.
   • If less than 2 Ω, verify the fuse is OK and there is voltage at the fuse.

• If the test lamp does not illuminate and the circuit fuse is open

1. Ignition OFF, remove the test lamp.
2. Test for infinite resistance between the ignition circuit and ground.
   • If less than infinite resistance, repair the short to ground on the circuit.
   • If infinite resistance, replace the B108 Air Quality Sensor.

• Go to next step: If the test lamp illuminates

5. Verify a test lamp does not illuminate between the signal circuit terminal 3 and ground.

• If the test lamp illuminates

1. Ignition OFF, remove the test lamp and disconnect the harness connector at the K33 HVAC Control Module. Ignition ON.
2. Test for less than 1 V between the signal circuit and ground.
   • If 1 V or greater, repair the short to voltage on the circuit.
   • If less than 1 V, replace the K33 HVAC Control Module.

• Go to next step: If the test lamp does not illuminate

6. Test for greater than 10 V between the signal circuit and ground.

• If less than 10 V

1. Ignition OFF, disconnect the harness connector at the K33 HVAC Control Module.
2. Test for infinite resistance between the signal circuit and ground.
   • If less than infinite resistance, repair the short to ground on the circuit.
   • Go to next step: If infinite resistance
3. Test for less than 2 Ω in the signal circuit end to end.
   • If 2 Ω or greater, repair the open/high resistance in the circuit.
   • If less than 2 Ω, replace the K33 HVAC Control Module.

• Go to next step: If greater than 10 V

7. Replace the B108 Air Quality Sensor.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

• HVAC Component Replacement Reference
• Control Module References for control module replacement, programming and setup
