Buick Regal: Inflatable Restraint Module Handling and Scrapping

Live and Undeployed Inflator Module

WARNING: A deployed dual stage inflator module will look the same whether one or both stages were used. Always assume a deployed dual stage inflator module has an active stage 2. Improper handling or servicing can activate the inflator module and cause personal injury.

Supplemental Inflatable Restraints

Take special care when handling or storing an undeployed inflator module. An inflator module deployment produces a rapid generation of gas. This may cause the inflator module, or an object in front of the inflator module, to project through the air in the event of an unlikely deployment.

Dual Stage Inflator Module

Dual stage inflator modules have 2 deployment stages. If stage 1 was used to deploy a dual stage inflator module, stage 2 may still be active. Therefore, a deployed dual stage inflator module must be treated as an active module. If disposal of a dual stage module is required, both deployment loops must be energized to deploy the air bag.

Scrapping Procedure

During the course of a vehicles useful life, certain situations may arise which will require the disposal of a live and undeployed inflator module. Do NOT dispose a live and undeployed inflator module through normal disposal channels until the inflator module has been deployed.

Do not deploy the inflator module in the following situations:

  • After replacement of an inflator module under warranty - the inflator module may need to be returned undeployed to the manufacturer.
  • If the vehicle is the subject of a Product Liability report, GM-1241, related to the SIR system and is subject to a preliminary investigation - do NOT alter the SIR system in any manner.
  • If the vehicle is involved in a campaign affecting the inflator modules - follow the instructions in the Campaign Service Bulletin for proper SIR handling procedures.

Deployment Procedures

You can deploy the inflator module either inside or outside of the vehicle. The method used depends upon the final disposition of the vehicle. Review the following procedures in order to determine which will work best in a given situation:

Deployment Outside Vehicle - Steering Wheel Module, I/P Module, and Roof Rail Module

Deploy the inflator module outside of the vehicle when the vehicle will be returned to service. Situations that require deployment outside of the vehicle include the following:

  • Using the SIR diagnostics, you determine that the inflator module is malfunctioning.
  • The inflator module is cosmetically damaged, scratched, or ripped.
  • The inflator module pigtail is damaged.
  • The inflator module connector is damaged.
  • The inflator module connector terminals are damaged.

Deployment and disposal of a malfunctioning inflator module is subject to any required retention period.

WARNING: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflator module as normal shop waste. Undeployed inflator modules contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed inflator module.

Failure to observe the following disposal methods may be a violation of appropriate country, regional or local laws.

Special Tools

  • J 38826 SIR Deployment Harness
  • J 39401-B SIR Deployment Fixture
  • An appropriate pigtail adapter

1. Turn OFF the ignition.

2. Remove the ignition key.

3. Put on safety glasses.

4. Remove the inflator module. Refer to the relevant airbag replacement procedure.

5.

Supplemental Inflatable Restraints

WARNING: A deployed dual stage inflator module will look the same whether one or both stages were used. Always assume a deployed dual stage inflator module has an active stage 2. Improper handling or servicing can activate the inflator module and cause personal injury.

Place the inflator module on a work bench, with the vinyl trim cover facing up and away from the surface.

6. Clear a space on the ground about 4 m (13.1 ft) in diameter for deployment of the inflator module or deployment fixture. If possible, use a paved, outdoor location free of activity. Otherwise, use a space free of activity on the shop floor. Ensure you have sufficient ventilation.

7. Clear the area of loose or flammable objects.

NOTE: Dual stage deployments are only used in steering wheel and I/P inflator modules. If stage 1 was used to deploy a dual stage inflator module, stage 2 may still be active. If disposal of a dual stage module is required, both deployment loops must be energized to deploy the air bag.

8. If you are deploying a steering wheel inflator module, place the inflator module in the center of the space.

9.

Supplemental Inflatable Restraints

When deploying an I/P inflator module, perform the following instructions:

  1. Place the J 39401-B SIR deployment fixture in the center of the cleared area.
  2. Fill the deployment fixture with water or sand.
  3. Using the proper nuts and bolts, mount the I/P module (1) to the deployment fixture (2), with the vinyl trim facing up.
  4. Securely tighten all fasteners that hold the I/P module (1) to the deployment fixture (2).

10.

Supplemental Inflatable Restraints

When deploying a roof rail module, perform the following instructions:

  1. Place the J 39401-B SIR deployment fixture (3) in the center of the cleared area.
  2. Fill the deployment fixture with water or sand to provide sufficient stabilization of fixture during deployment.
  3. Adjust and secure the fixture arms (4) to the deployment fixture (3), using the proper nuts and bolts.
  4. Attach the roof rail module in the deployment fixture and securely tighten all fasteners.

11.

Supplemental Inflatable Restraints

Inspect the SIR deployment harness and the appropriate pigtail adapter (2) for damage. Replace as needed.

12. Short the 2 SIR deployment harness leads (1) together using one banana plug seated into the other.

13. Connect the appropriate pigtail adapter (2) to the SIR deployment harness (1).

14.

Supplemental Inflatable Restraints

Extend the SIR deployment harness and adapter to the full length from the deployment fixture or area.

15.

Supplemental Inflatable Restraints

NOTE: On a dual stage inflator module, both connectors must be attached to the deployment harness adapter. This will ensure that both stage 1 and stage 2 of the deployment loops are energized, regardless of the deployment state.

Connect the inflator module (1) to the adapter (2) on the SIR deployment harness (3).

NOTE: The rapid expansion of gas involved with deploying an inflator module is very loud. Notify all the people in the immediate area that you intend to deploy the inflator module.

When the inflator module deploys, the deployment fixture may jump about 30 cm (1 ft) vertically. This is a normal reaction of the inflator module due to the force of the rapid expansion of gas inside the inflator module.

If you are deploying a dual stage inflator module with stage 1 already deployed, the fixture may not move and the noise may have been reduced.

16. Clear the area of people.

17.

Supplemental Inflatable Restraints

Separate the 2 banana plugs on the SIR deployment harness that were shorted together earlier in the procedure.

18.

Supplemental Inflatable Restraints

Place a 12-volt minimum/2-amp minimum power source, such as a vehicle battery, near the shorted end of the harness.

19. Connect the SIR deployment harness wires to the power source. Deployment of the inflator module will occur when contact is made.

20.

Supplemental Inflatable Restraints

Disconnect the SIR deployment harness from the power source after the inflator module deploys.

21. If the inflator module did not deploy, disconnect the adapter and discontinue the procedure and contact the Technical Assistance Group.

If deployment was successful, proceed to the following steps.

WARNING: After deployment, the metal surfaces of the SIR component may be very hot. To help avoid a fire or personal injury:

  • Allow sufficient time for cooling before touching any metal surface of the SIR component.
  • Do not place the deployed SIR component near any flammable objects.

22. Seat one banana plug into the other in order to short the deployment harness leads.

23.

Supplemental Inflatable Restraints

Put on a pair of shop gloves.

24. Disconnect the pigtail adapter from the inflator module as soon as possible.

25. Inspect the pigtail adapter and the SIR deployment harness. Replace as needed.

26. Dispose of the deployed inflator module through normal refuse channels.

27. Wash your hands with a mild soap.

Deployment Inside Vehicle - Vehicle Scrapping Procedure

Deploy the inflator modules inside of the vehicle when destroying the vehicle or when salvaging the vehicle for parts. This includes, but is not limited to, the following situations:

  • The vehicle has completed all useful life.
  • Irreparable damage occurred to the vehicle in a non-deployment type accident.
  • Irreparable damage occurred to the vehicle during a theft.
  • The vehicle is being salvaged for parts to be used on a vehicle with a different VIN, as opposed to rebuilding as the same VIN.

WARNING: When deploying a SIR component for disposal, perform the deployment procedures in the order listed. Failure to observe the procedures in the order listed may result in personal injury.

1. Lower the driver and passenger windows.

2. Turn the ignition switch to the OFF position and remove the ignition key.

3. Check that all inflator modules which will be deployed are mounted securely.

  • Driver inflator module is secured to the steering wheel.
  • Passenger inflator module is secured to the instrument panel.
  • Left roof rail inflator module is secured to the left roof rail.
  • Right roof rail inflator module is secured to the right roof rail.

4. Put on safety glasses.

5. Remove all loose objects from the front seats.

WARNING: A deployed dual stage inflator module will look the same whether one or both stages were used. Always assume a deployed dual stage inflator module has an active stage 2. Improper handling or servicing can activate the inflator module and cause personal injury.

6.

Supplemental Inflatable Restraints

Disconnect the steering wheel module yellow connector (1) from vehicle harness yellow connector (2).

7.

Supplemental Inflatable Restraints

NOTE: If the vehicle is equipped with dual stage air bags the steering wheel module and I/P module will each have 4 wires. For determining high and low circuits, refer to Component Connector End View Index.

Cut the yellow harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.

8. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.

9.

Supplemental Inflatable Restraints

Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gauge) or thicker multi-strand wire. Use these wires to fabricate the driver deployment harness.

10. Strip 13 mm (0.5 in) of insulation from both ends of the wires.

11. Twist together one end from each of the wires in order to short the wires. Deployment wires shall remain shorted, and not connected to a power source until you are ready to deploy the inflator module.

12.

Supplemental Inflatable Restraints

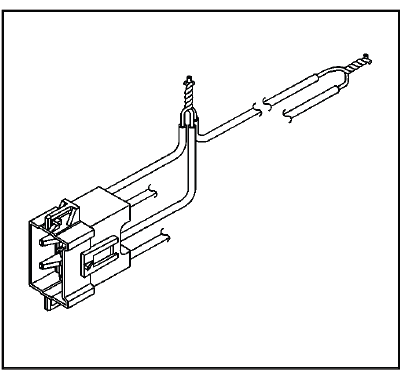

Twist together the 2 connector wire leads from the high circuits from both stages of the steering wheel module, to one set of deployment wires. To determine the correct circuits, refer to Component Connector End View Index.

13. Inspect that the 3-wire connection is secure.

14.

Supplemental Inflatable Restraints

Bend flat the twisted connection.

15.

Supplemental Inflatable Restraints

Secure and insulate the 3-wire connection to the deployment harness using electrical tape.

16.

Supplemental Inflatable Restraints

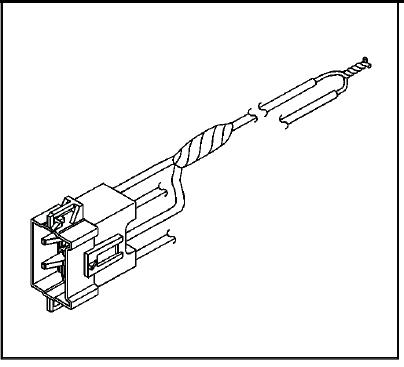

Twist together the 2 connector wire leads from the low circuits from both stages of the steering wheel module, to one set of deployment wires. To determine the correct circuits, refer to Component Connector End View Index.

17. Inspect that the 3-wire connection is secure.

18.

Supplemental Inflatable Restraints

Bend flat the twisted connection.

19.

Supplemental Inflatable Restraints

Secure and insulate the 3-wire connection to the deployment harness using electrical tape.

20. Connect the deployment harness to the connector on the steering wheel module.

21.

Supplemental Inflatable Restraints

Route the deployment harness out of the driver side of the vehicle.

22.

Supplemental Inflatable Restraints

Disconnect the yellow left roof rail harness connector from the vehicle harness connector.

23.

Supplemental Inflatable Restraints

Cut the harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.

24. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.

25.

Supplemental Inflatable Restraints

Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gauge) or thicker multi-strand wire. These wires will be used to fabricate the roof rail air bag deployment harness.

26. Strip 13 mm (0.5 in) of insulation from both ends of the wires.

27. Twist together one end from each of the wires in order to short the wires.

28.

Supplemental Inflatable Restraints

Twist together one connector wire lead to one deployment wire.

29.

Supplemental Inflatable Restraints

Bend flat the twisted connection.

30. Secure and insulate the connection using electrical tape.

31.

Supplemental Inflatable Restraints

Twist together, bend, and tape the remaining connector wire lead to the remaining deployment wire.

32. Connect the deployment harness to the yellow connector of the roof rail module.

33.

Supplemental Inflatable Restraints

Route the deployment harness out of the driver side of the vehicle.

34.

Supplemental Inflatable Restraints

Disconnect the I/P module yellow harness connector (1) from the vehicle harness connector (2).

35.

Supplemental Inflatable Restraints

NOTE: If the vehicle is equipped with dual stage air bags the steering wheel module and I/P module will each have 4 wires. For determining high and low circuits, refer to Component Connector End View Index.

Cut the yellow harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.

36. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.

37.

Supplemental Inflatable Restraints

Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gauge) or thicker multi-strand wire. These wires will be used to fabricate the passenger deployment harness.

38. Strip 13 mm (0.5 in) of insulation from both ends of the wires.

39. Twist together one end from each of the wires in order to short the wires.

40.

Supplemental Inflatable Restraints

Twist together the 2 connector wire leads from the high circuits from both stages of the I/P module to one set of deployment wires. To determine the correct circuits, refer to Component Connector End View Index.

41. Inspect that the 3-wire connection is secure.

42.

Supplemental Inflatable Restraints

Bend flat the twisted connection.

43.

Supplemental Inflatable Restraints

Secure and insulate the 3-wire connection to the deployment harness using electrical tape.

44.

Supplemental Inflatable Restraints

Twist together the 2 connector wire leads from the low circuits from both stages of the I/P module to one set of deployment wires. To determine the correct circuits, refer to Component Connector End View Index.

45. Inspect that the 3-wire connection is secure.

46.

Supplemental Inflatable Restraints

Bend flat the twisted connection.

47.

Supplemental Inflatable Restraints

Secure and insulate the 3-wire connection to the deployment harness using electrical tape.

48. Connect the deployment harness to the I/P module in-line connector.

49.

Supplemental Inflatable Restraints

Route the deployment harness out of the passenger side of the vehicle.

50.

Supplemental Inflatable Restraints

Disconnect the yellow harness connector to the right roof rail air bag from the vehicle harness connector.

51.

Supplemental Inflatable Restraints

Cut the harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.

52. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.

53.

Supplemental Inflatable Restraints

Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gauge) or thicker multi-strand wire. These wires will be used to fabricate the roof rail module deployment harness.

54. Strip 13 mm (0.5 in) of insulation from both ends of the wires.

55. Twist together one end from each of the wires in order to short the wires.

56.

Supplemental Inflatable Restraints

Twist together one connector wire lead to one deployment wire.

57.

Supplemental Inflatable Restraints

Bend flat the twisted connection.

58. Secure and insulate the connection using electrical tape.

59.

Supplemental Inflatable Restraints

Twist together, bend, and tape the remaining connector wire lead to the remaining deployment wire.

60.

Supplemental Inflatable Restraints

Connect the deployment harness to the roof rail module yellow connector.

61.

Supplemental Inflatable Restraints

Route the deployment harness out of the passenger side of the vehicle.

62. Completely cover the windshield and the front door window openings with a drop cloth.

63. Stretch to the full length all of the deployment harness wires on the right side of the vehicle.

64. Deploy each deployment loop one at a time.

65. Place a power source, 12 V minimum/2 A minimum, such as a vehicle battery, near the shorted end of the harnesses.

66. Separate one set of wires and touch the wire ends to the power source in order to deploy the selected inflator module.

67. Disconnect the deployment harness from the power source and twist the wire ends together.

68. Continue the same process with the remaining deployment harnesses.

69.

Supplemental Inflatable Restraints

Stretch to the full length all of the deployment harness wires on the left side of the vehicle.

70. Deploy each deployment loop one at a time.

71. Place a power source, 12 V minimum/2 A minimum, such as a vehicle battery, near the shorted end of the harnesses.

72. Separate one set of wires and touch the wires ends to the power source in order to deploy the selected inflator modules.

73. Disconnect the deployment harness from the power source and twist the wire ends together.

74. Continue the same process with the remaining deployment harnesses.

75. Remove the drop cloth from the vehicle.

76. Disconnect all harnesses from the vehicle.

77. Discard the harnesses.

78. Scrap the vehicle in the same manner as a non-SIR equipped vehicle.

79. If one or all of the inflator modules did not deploy, use the relevant airbag replacement procedure to remove the undeployed modules from the vehicle.

    READ NEXT:

     Pretensioner Handling and Scrapping

    Scrapping Procedure During the course of a vehicles useful life, certain situations may arise which will necessitate the disposal of a live (undeployed) pretensioner. The following information covers

     Description and Operation

    SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM DESCRIPTION AND OPERATION SIR System Overview The supplemental inflatable restraint (SIR) system supplements the protection offered by the seat belts. The SIR

     Accessories and Equipment

    SEE MORE:

     Keyless Unlocking/Locking from the Driver Door

    When the doors are locked and the RKE transmitter is within 1m (3 ft) of the driver door handle, pressing the lock/unlock button on the driver door handle will unlock the driver door. If the lock/unlock button is pressed again within five seconds, all passenger doors will unlock. Pull the door handl

     Engine Compartment Fuse Block

    To remove the fuse block cover, squeeze the three retaining clips on the cover and lift it straight up. Caution: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component. The vehicle may not be equipped with all of the fuses, rel

    © 2019-2024 Copyright www.buregal6.com
