Buick Regal: Rear Suspension 4 Corner Air Leveling Position Sensor Replacement (CNQ)
Removal Procedure
1. Remove the rear tire and wheel assembly.
2. Separate the rear suspension 4 corner air leveling position sensor harness clip from the underbody rear side rail.
3. Electrical Connector@Rear Suspension 4 Corner Air Leveling Position Sensor - Disconnect.
4.
.png)

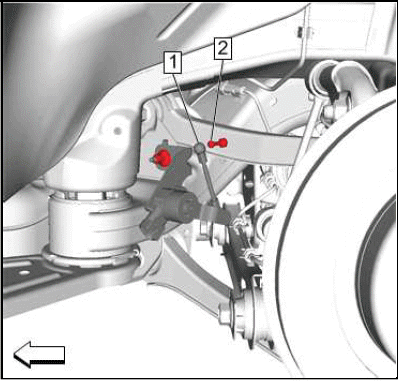

Link Rod (1)@Ball Stud (2) - Disconnect.
5.
.png)

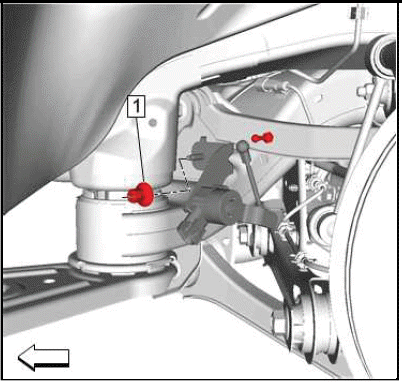

Rear Suspension 4 Corner Air Leveling Position Sensor Bracket Nut (1) - Remove.
6.
.png)

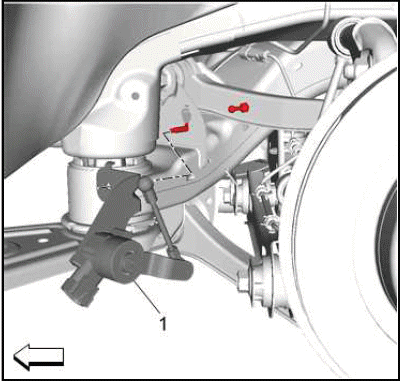

Rear Suspension 4 Corner Air Leveling Position Sensor (1) - Remove.
Installation
1.
.png)
Rear Suspension 4 Corner Air Leveling Position Sensor (1) - Install.
2.
.png)
CAUTION: Refer to Fastener Caution.
Rear Suspension 4 Corner Air Leveling Position Sensor Bracket Nut (1) - Install and tighten 9 N.m (80 lb in).
3.
.png)

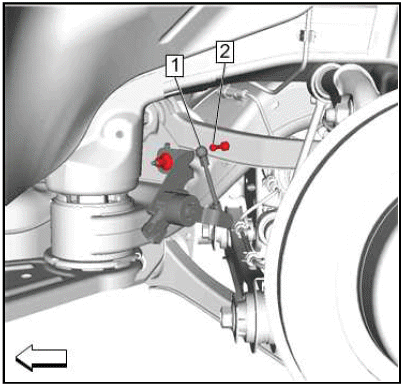

Link Rod (1)@Ball Stud (2) - Connect.
4. Electrical Connector@Rear Suspension 4 Corner Air Leveling Position Sensor - Connect.
5. Install the rear suspension 4 corner air leveling position sensor harness clip to the underbody rear side rail.
6. Install the rear tire and wheel assembly.
REAR SUSPENSION 4 CORNER AIR LEVELING POSITION SENSOR REPLACEMENT (GNC)
Removal Procedure
1. Remove the rear tire and wheel assembly.
2.
.png)

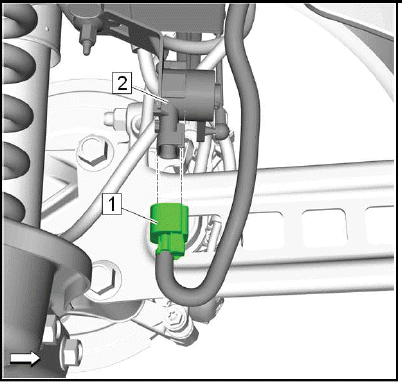

Electrical Connector(1)@Rear Suspension 4 Corner Air Leveling Position Sensor (2) - Disconnect.
3.
.png)

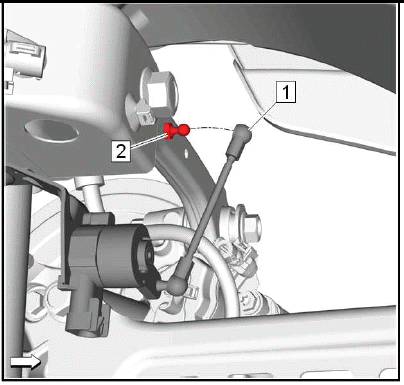

Link Rod (1)@Ball Stud (2) - Disconnect.
4.
.png)

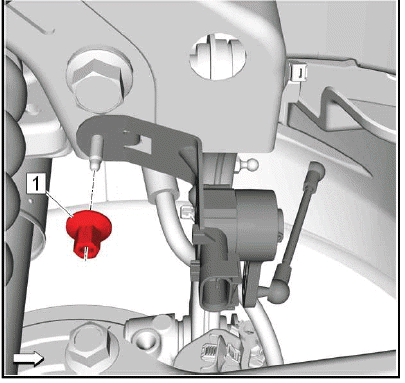

Rear Suspension 4 Corner Air Leveling Position Sensor Bracket Nut (1) - Remove.
5.
.png)

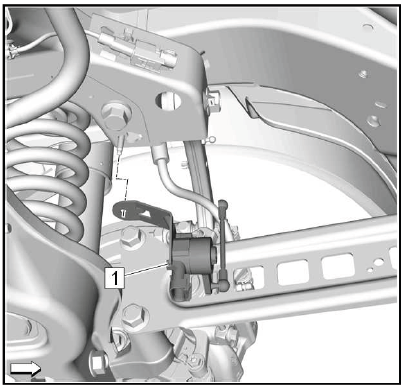

Rear Suspension 4 Corner Air Leveling Position Sensor (1) - Remove.
Installation
1.
.png)
Rear Suspension 4 Corner Air Leveling Position Sensor (1) - Install.
2.
.png)
CAUTION: Fastener Caution.
Rear Suspension 4 Corner Air Leveling Position Sensor Bracket Nut (1) - Install and tighten 9 N.m (80 lb in).
3.
.png)
Link Rod (1)@Ball Stud (2) - Connect.
4.
.png)
Electrical Connector@Rear Suspension 4 Corner Air Leveling Position Sensor - Connect.
5. Install the rear tire and wheel assembly.
