Buick Regal: Transmission Fluid Cooler Inlet Pipe Replacement (9T50 / 9T60)
Removal Procedure
1. Place a suitable container under the vehicle to catch any spilled transmission fluid.
2. Front Wheelhouse Liner-Left Side - Remove.
3. Front Compartment Splash Shield-Right Side - Remove.
4.
.png)
NOTE: Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination or spills.
Transmission Fluid Cooler Inlet Pipe(1)@Radiator - Remove.
5.
.png)
Transmission Fluid Cooler Inlet Pipe(1)@Radiator - Unclip.
6.
.png)
Transmission Fluid Cooler Inlet Pipe(1)@Transmission - Unclip.
7.
.png)

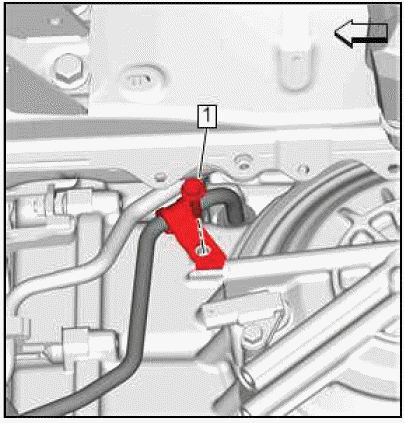

Transmission Fluid Cooler Inlet Pipe Bolt(1)@Transmission - Remove.
8.
.png)
Transmission Fluid Cooler Inlet Pipe(1)@Transmission - Remove.
9. Remove the transmission fluid cooler inlet pipe (1) from the vehicle.
Installation Procedure
1. Remove the caps from the fittings and plugs from the holes before installing the transmission fluid cooler pipes.
2. Install the transmission fluid cooler inlet pipe to the vehicle.
3.
.png)
Transmission Fluid Cooler Inlet Pipe(1)@Transmission - Install.
4.
.png)
CAUTION: Refer to Fastener Caution.
Transmission Fluid Cooler Inlet Pipe Bolt(1)@Transmission - Install and tighten9 N.m (80 lb in).
5.
.png)
Transmission Fluid Cooler Inlet Pipe(1)@Transmission - Install.
6.
.png)
Transmission Fluid Cooler Inlet Pipe(1)@Radiator - Install.
7.
.png)
Transmission Fluid Cooler Outlet Pipe(1)@Radiator - Install.
8. Front Wheelhouse Liner-Left Side - Install.
9. Front Compartment Splash Shield-Right Side - Install.
10. Fill the transmission to the proper level with NEW transmission fluid. 11. Inspect for transmission fluid leaks.
