Buick Regal: Differential Carrier Bushing Replacement - Rear

Tools Required

J-45725 Cradle Bushing Replacer

For equivalent regional tool, refer to Special Tools.

Removal Procedure

1. Raise and support the vehicle.

2. Remove the rear differential assembly.

3.

Rear Drive Axle

Mark a reference point on the frame and old bushing at the 12 and 6 o'clock position to use to align the new bushing.

4.

Rear Drive Axle

Position the J-45725-1A (1) on the bushing (2).

5. Position the J-45725-2A (1) on the frame.

IMPORTANT: Apply a small amount of grease on the threaded to lubricate the nuts when turning the nuts.

6. Install the threaded rod, bearing and washers.

7.

Rear Drive Axle

Adjust the nuts so that they are touching the J-45725-1A (2) and the J-45725-2A (1).

8. Install the proper size wrenches on the nuts.

9.

Rear Drive Axle

IMPORTANT: In the following service procedure, use only HAND TOOLS when using the J-45725 Cradle Bushing Replacer.

While holding the front wrench (1) rotate the rear wrench (2) to remove the bushing.

10. Remove the special tools.

11.

Rear Drive Axle

Remove the bushing from the frame.

Installation Procedure

1.

Rear Drive Axle

IMPORTANT: Failure to perform the following service procedure prior to the installation of the new bushing, could cause premature failure of the bushing.

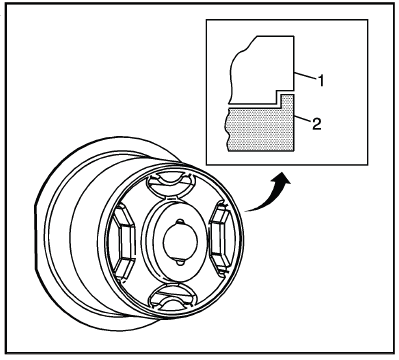

Before the installation of the new bushing, use a straight edge draw a line on the new bushing at the 12 and 6 o'clock positions. Ensure that the grooves (1) are at the 12 and 6 o'clock positions.

2. Position the new bushing so that the reference marks on the frame and the bushing are in alignment. This will ensure that the new bushing will be within the 5 degree specification required for the proper alignment of the bushing.

IMPORTANT: The following procedure is to temporarily hold the new bushing in place so that the special tools can be installed for the proper installation. This is NOT to be used to install the bushing.

3. Using a block of wood and a hammer, slightly tap the bushing into the frame.

4. Assemble the threaded rod, bearings and washers as indicated in step 7 in the removal procedure.

5.

Rear Drive Axle

Position the J-45725-2 (2) on the inside of the frame.

6. Position J-45725-2A (1) on the outside of the frame.

7. Adjust the nuts so that they are touching the J-45725-2 (1) and the J-45725-2A (2).

8.

Rear Drive Axle

While holding the front wrench (2) rotate the rear wrench (1) to install the bushing.

9. Remove the special tools.

10. Install the rear differential assembly.

11. Lower the vehicle.
